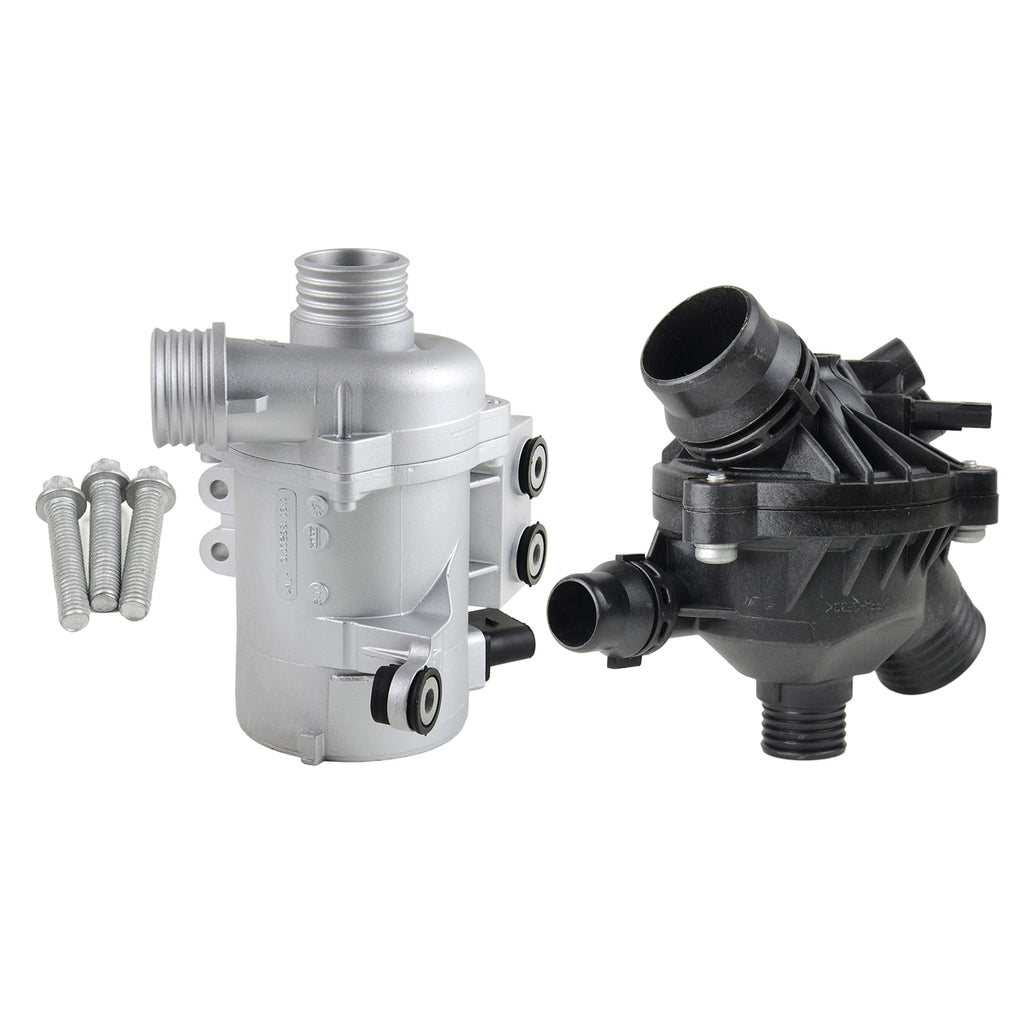

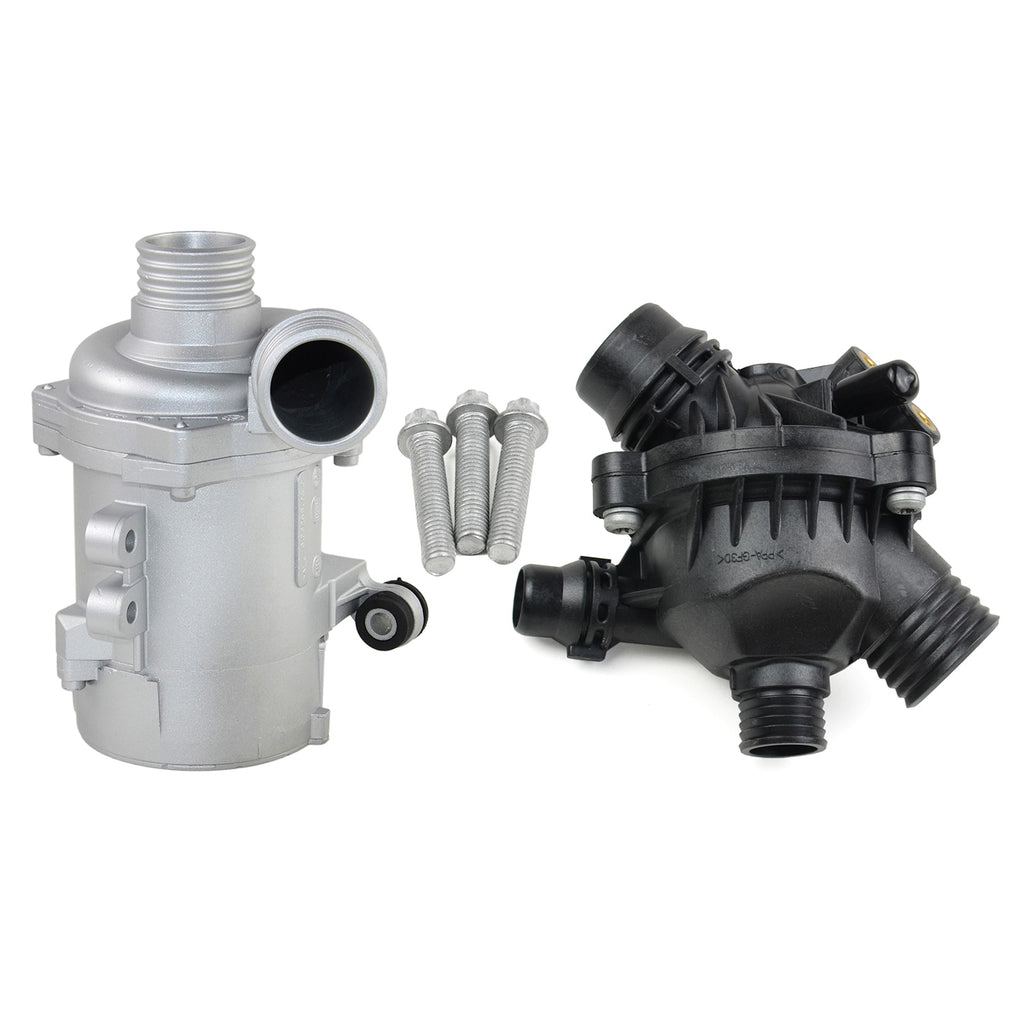

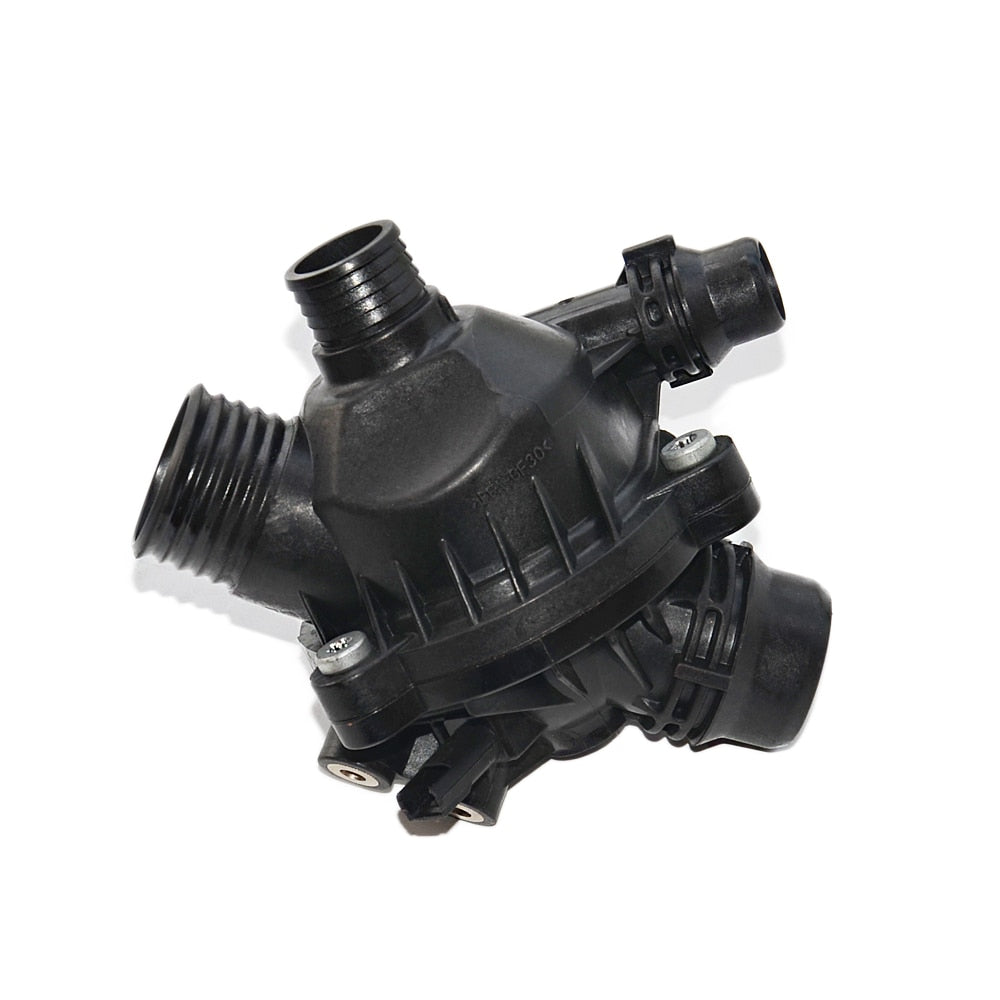

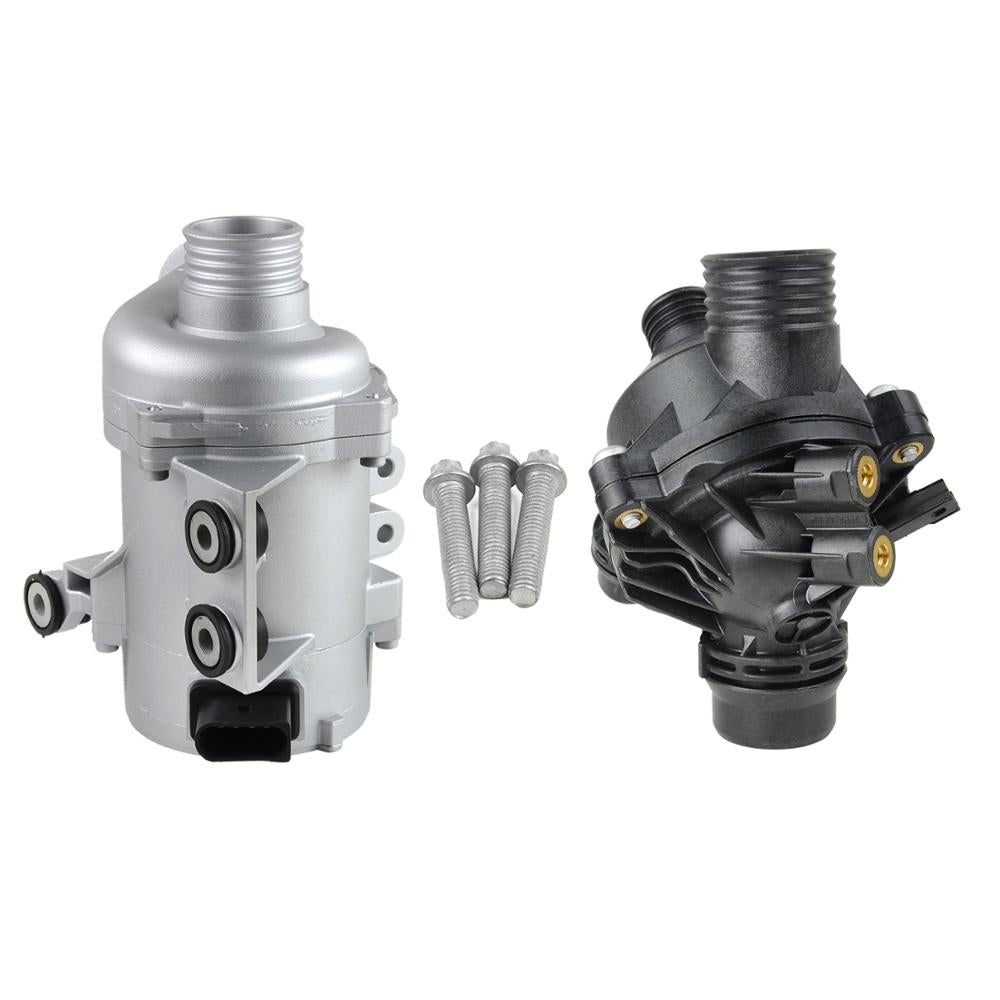

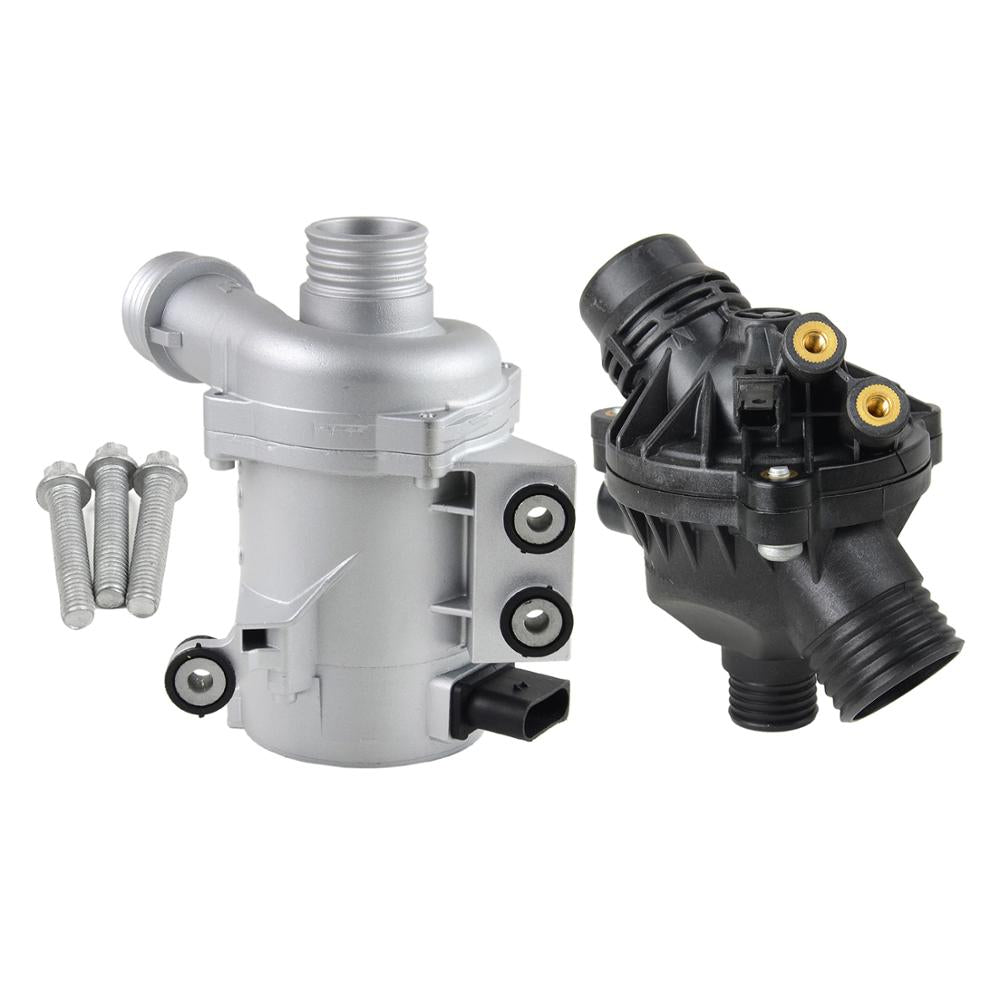

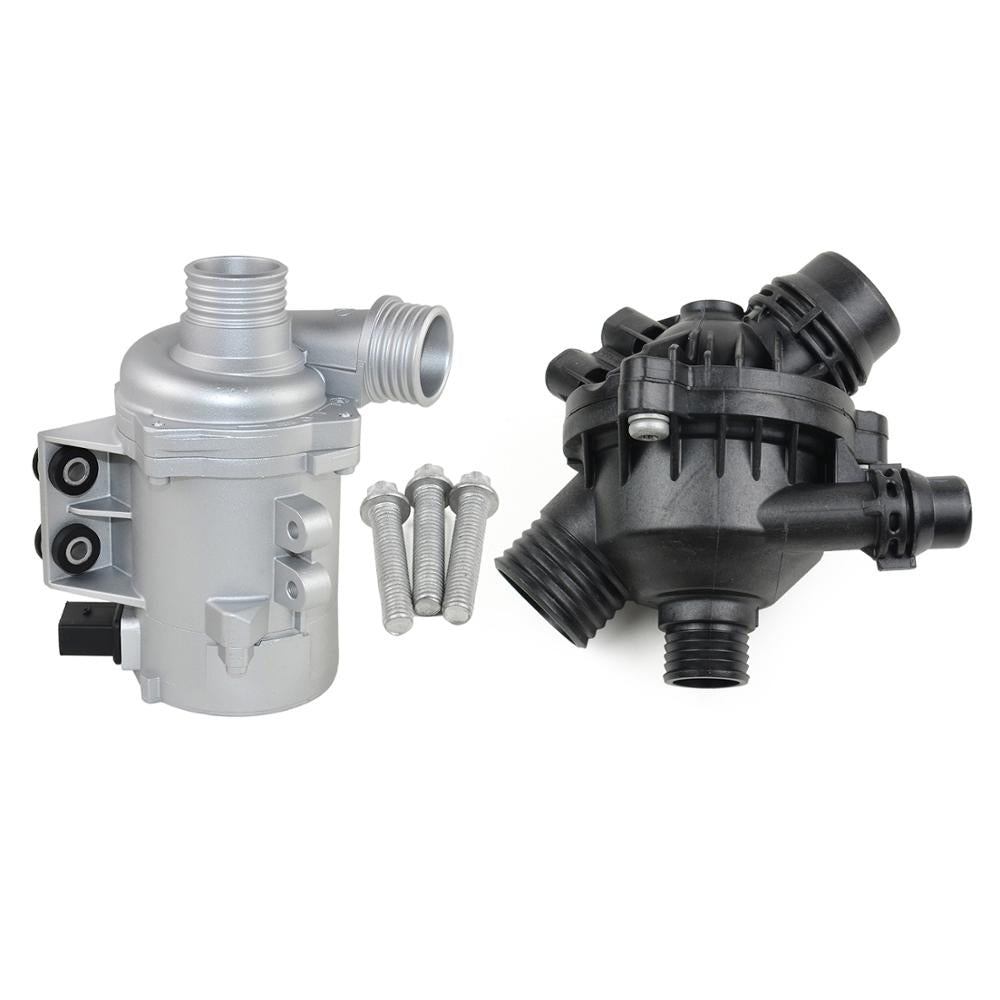

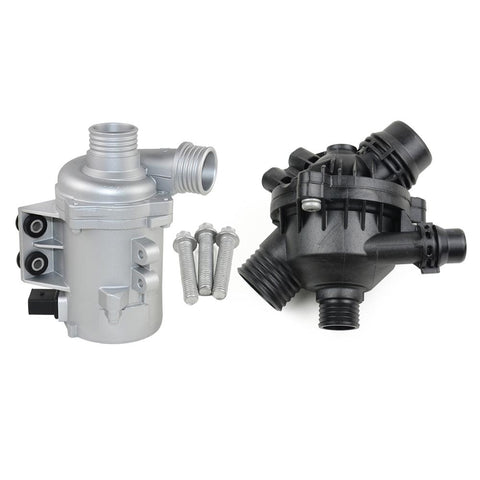

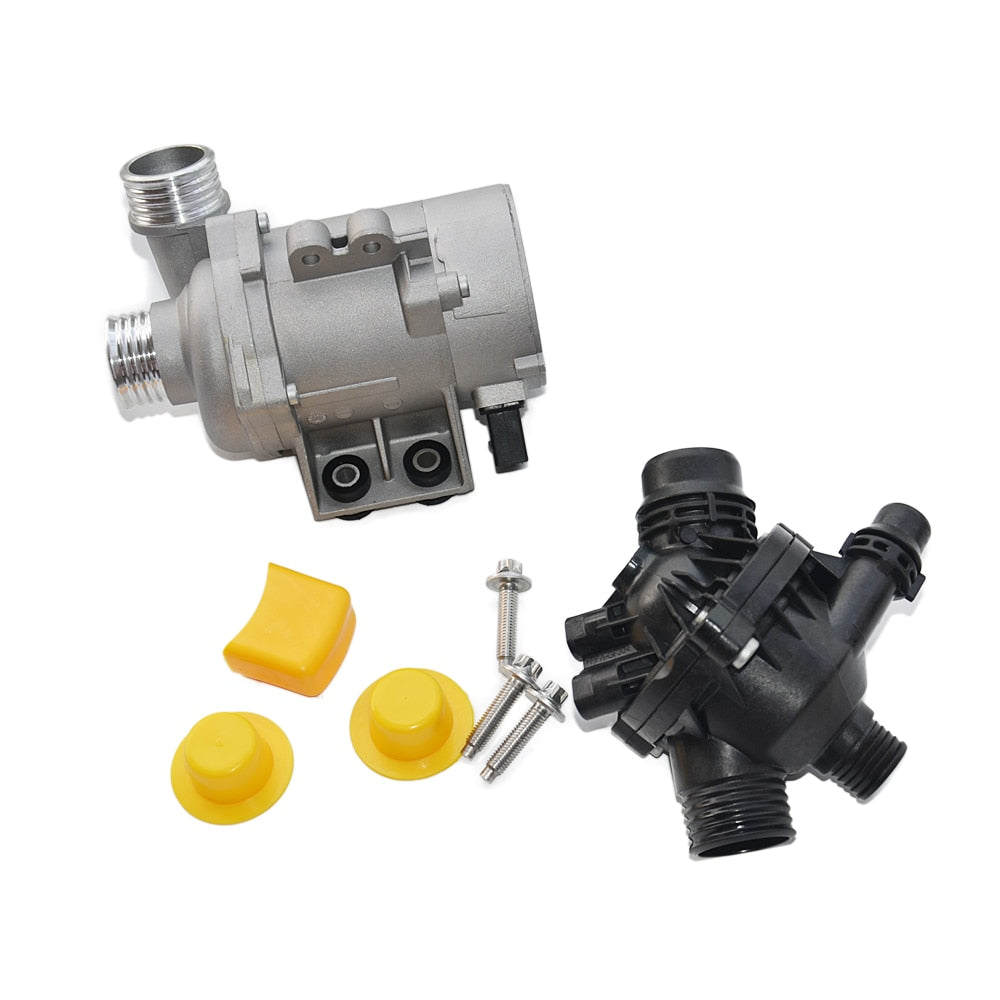

BMW N52 N53 Electric Water Pump & Thermostat & Bolt

  • Sale
  • Regular price $599.00
  • 8 available
Tax included. Shipping calculated at checkout.


Welcome to NZ Autospares

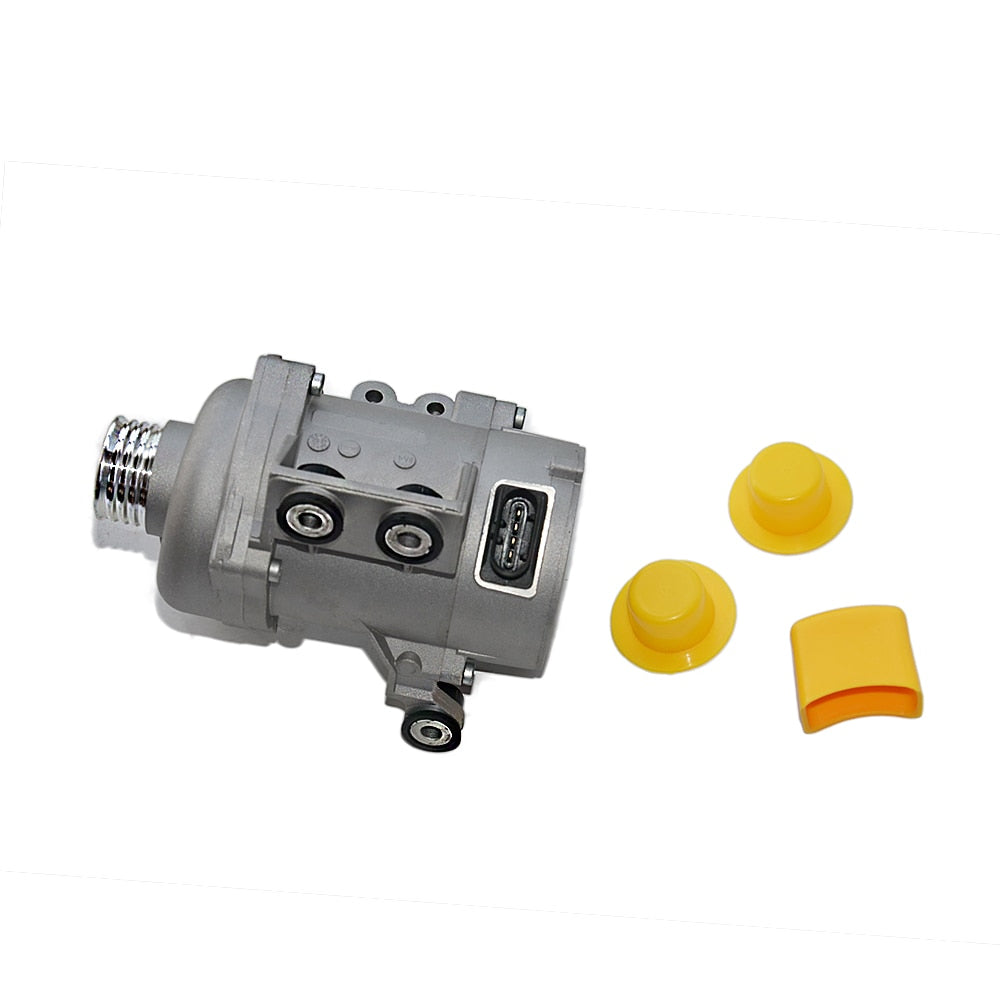

BMW N52 N53 E81 E90 E91 E92 E93 X1 X3 X5 Electric Water Pump

Part number 11517546994 ,11517563183 ,11517586925 ,7.02851.20.8 ,702851208

Fits the following BMW

1 Series E81 E82 125i 2996 218/160 N52B30A 07--12 130i 2996 265/195 N52B30A 05--12 130i 2996 258/190 N52B30A 05--12

3 Series E90 E91 323i 2497 177/130 N52B25A 06--11 325i 2996 211/155 N53B30A 07--12 325i // 2497 218/160 N52B25 05--12 325i / 2996 218/160 N51/N53 05--11 330i /Xi 2996 258/190 N52B30 05--11 330i /i 2996 272/200 N53B30A 06--11

5 Series E60 E61 523i 2497 177/130 N52B25 05--10 523i 2497 190/140 N52B25A 07--10 525i /Xi 2497 218/160 N52B25 05--10 525i /XDrive/Xi 2996 218/160 N53B30A 07--10 530i /Xi 2996 258/190 N52B30 05--10 530i /XDrive/Xi 2996 272/200 N52/N53 07--10

6 Series E63 E64 630i /Cabrio 2996 258/190 N52B30 04-> 630i /Cabrio 2996 272/200 N53B30, 07-10

X1 E84 Xdrive 25i 2996 218/160 N52B30A 10-> X drive 28i 2996 258/190 N52B30A 09->

X3 E83 2.5 Si-Xdrive 2 2497 218/160 N52B25A 06--10 3.0 Si-Xdrive 3 2996 272/200 N52B30A 06--10

X5 E70 3.0 Si 2996 272/200 N52B30A 07--08 Xdrive 30i 2996 272/200 N52B30A 08--10

Z4 E85 2.5i 2497 177/130 N52B25A 06--09 2.5 Si 2497 218/160 N52B25A 06--09



Feel free to ask questions or contact us We are able to acquire a wide range of other parts through our suppliers. With 15 years experience we can find it for you.

Can't find it here check out our Trademe Store

Signs of a failing BMW electric water pump

These BMW Electric water pumps have shown to only last around 120,000kms then will fail and need to be replaced. if you are near this interval you may want to consider replacing it now.

Warning lights for overheating come on.

How to do an easy test using the Purge Procedure

WARNING: if the pump is working it will spray at a strong current and may spray into you face safety googles and a rag is recommended to have on hand.

Step 1. Get into the car and shut the door. ( if door is open it will cancel procedure so please have another person with you to help, I had to climb out the window which we don't recommend...)

Step 2. Put the Key Fob in the Ignition.

Step 3. Press start button with foot OFF the brake.

Step 4. Turn heat to highest temperature, with fan on the lowest setting.

Step 5. Press and hold the accelerator for 10 seconds,

You should hear the water pump start to circulate, if you open the radiator cap you will see coolant pulse out of the side near the cap opening.

If you do not hear anything it is likely the pump has failed or if you hear something and open the cap it is either a very weak pulse of water or nothing at all it is likely the pump has failed.
